Polymer inspection cover square (A15) green 385*385 mm

$5.90

SKU: 122 Category:

Description

The green hatch is used in systems with no well installation and is also suitable for installation on a pipe or a well with an outer diameter of 315 mm. Designed for installation in a pedestrian and park area.

Material: polyethylene without sand.

Complies with the technical specifications; DSTU B V.2.5-26:2005, European standard EN 124-6:2015 TU U 25.2-31642900-003:2006. Certificated.

Additional information

Class

А15

Mass

3.2 kg

Hull height

55 mm

Jacks height

10 mm

Maximum load

2 t

Rated load capacity

1.5 t

Body length

385 mm

Opening size

295 mm

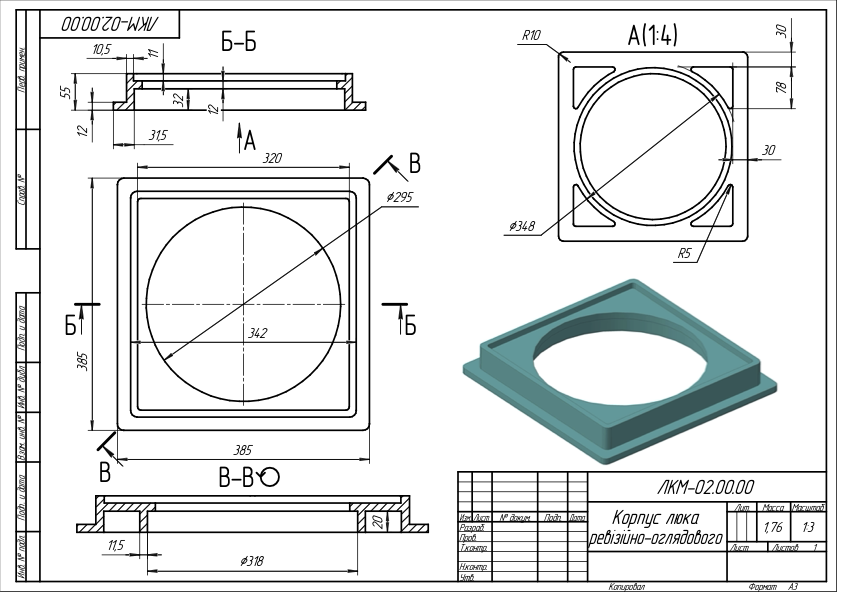

Housing size

385 mm

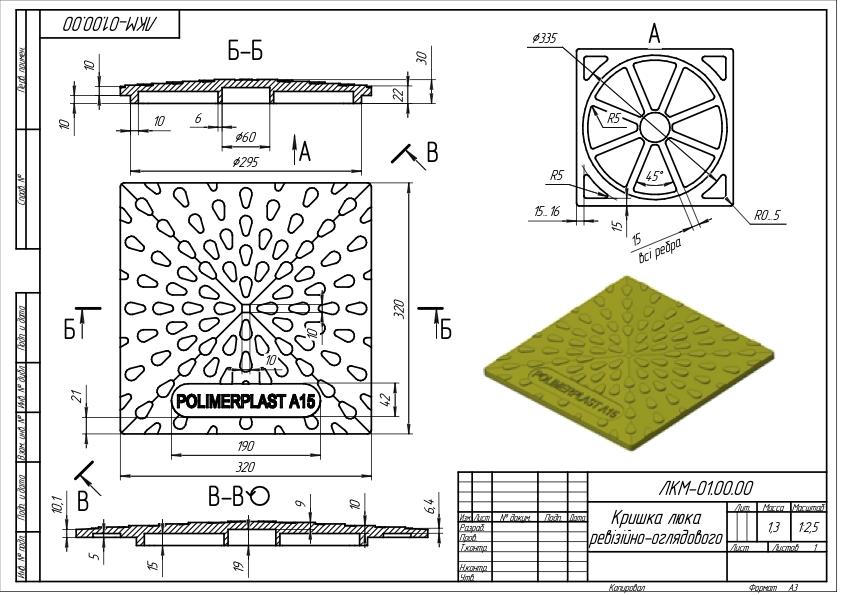

Cover size

323 mm

Crank width

323 mm
